CRBT超薄型
HYNY德国品牌轴承

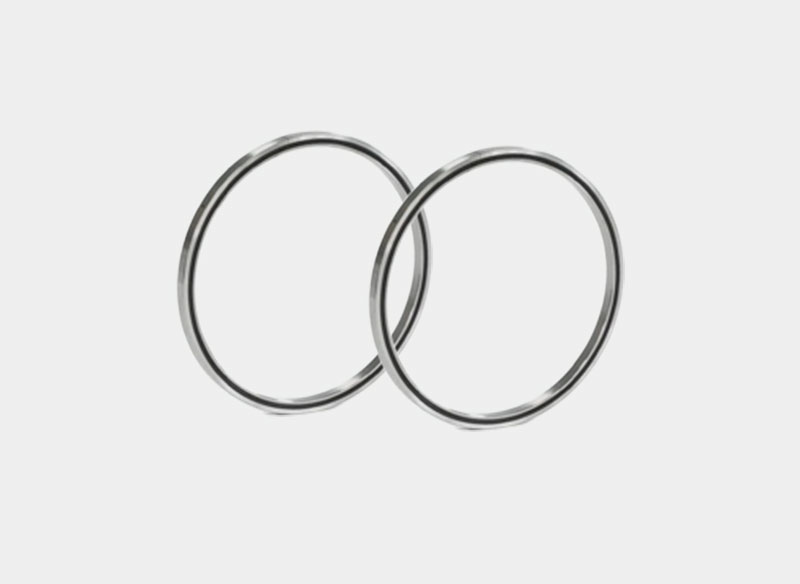

CRBT超薄型
内外圈整体，超薄，此型号是将RB型内外圈厚度减小到极限的紧凑型尺寸。HYNY提供内径最小到10mm的超薄型CRBT系列交叉滚子轴承，欢迎选购。
|
公称型号(按密封形式区分)
|
主要尺寸(mm)
|
滚柱节圆直径
|
额定载荷(KN)
|
润滑孔
|
安装尺寸(mm)
|
重量(kg)
|
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
开式
|
密封型
|
d
|
D
|
B
|
r1(min)
|
dp
|
Cr
|
Cor
|
a
|
b
|
ds
|
Dh
|
|
| CRBT1005MN | — | 100 | 111 | 5 | 0.15 | 104.7 | 3.38 | 6.62 | - | - | 102.5 | 107 | 0.061 |
| CRBT955MN | — | 95 | 106 | 5 | 0.15 | 99.7 | 3.23 | 6.3 | - | - | 97.5 | 102 | 0.059 |
| CRBT905MN | — | 90 | 101 | 5 | 0.15 | 94.7 | 3.2 | 6.05 | - | - | 92.5 | 97 | 0.056 |
| CRBT855MN | — | 85 | 96 | 5 | 0.15 | 89.7 | 3.1 | 5.7 | - | - | 87.5 | 92 | 0.053 |
| CRBT805MN | — | 80 | 91 | 5 | 0.15 | 84.7 | 3.06 | 5.42 | - | - | 82.5 | 87 | 0.05 |
| CRBT755MN | — | 75 | 86 | 5 | 0.15 | 79.7 | 2.9 | 5.06 | - | - | 77.5 | 82 | 0.047 |
| CRBT705MN | — | 70 | 81 | 5 | 0.15 | 74.7 | 2.82 | 4.69 | - | - | 72.5 | 77 | 0.044 |
| CRBT655MN | — | 65 | 76 | 5 | 0.15 | 69.7 | 2.72 | 4.3 | - | - | 67.5 | 72 | 0.041 |
| CRBT605MN | — | 60 | 71 | 5 | 0.15 | 64.7 | 2.64 | 4.1 | - | - | 62.5 | 67 | 0.038 |
| CRBT555MN | — | 55 | 66 | 5 | 0.15 | 59.7 | 2.52 | 3.8 | - | - | 57.5 | 62 | 0.035 |
| CRBT505MN | — | 50 | 61 | 5 | 0.15 | 54.7 | 2.28 | 3.2 | - | - | 52.5 | 57 | 0.0323 |
| CRBT455MN | — | 45 | 56 | 5 | 0.15 | 49.7 | 2.15 | 2.9 | - | - | 47.5 | 52 | 0.029 |
| CRBT405MN | — | 40 | 51 | 5 | 0.15 | 44.7 | 2 | 2.52 | - | - | 42.5 | 47 | 0.0265 |
| CRBT355MN | — | 35 | 46 | 5 | 0.15 | 39.7 | 1.89 | 2.31 | - | - | 37.5 | 42 | 0.0242 |
| CRBT305MN | — | 30 | 41 | 5 | 0.15 | 34.7 | 1.77 | 1.97 | - | - | 32.5 | 37 | 0.0207 |
| CRBT255MN | — | 25 | 36 | 5 | 0.15 | 29.7 | 1.65 | 1.78 | - | - | 27.5 | 32 | 0.018 |
| CRBT205MN | — | 20 | 31 | 5 | 0.15 | 24.7 | 1.4 | 1.29 | - | - | 22.5 | 27 | 0.0148 |
| CRBT155MN | — | 15 | 26 | 5 | 0.15 | 19.7 | 1.32 | 1.11 | - | - | 17.5 | 22 | 0.0119 |
| CRBT105MN | — | 10 | 21 | 5 | 0.15 | 14.7 | 1.12 | 0.81 | - | - | 12.5 | 17 | 0.009 |
